YV_ laMoneta

Il processo di produzione muore per coniatura

Recommended Posts

YV_ laMoneta
YV_ laMoneta
YV_ laMoneta

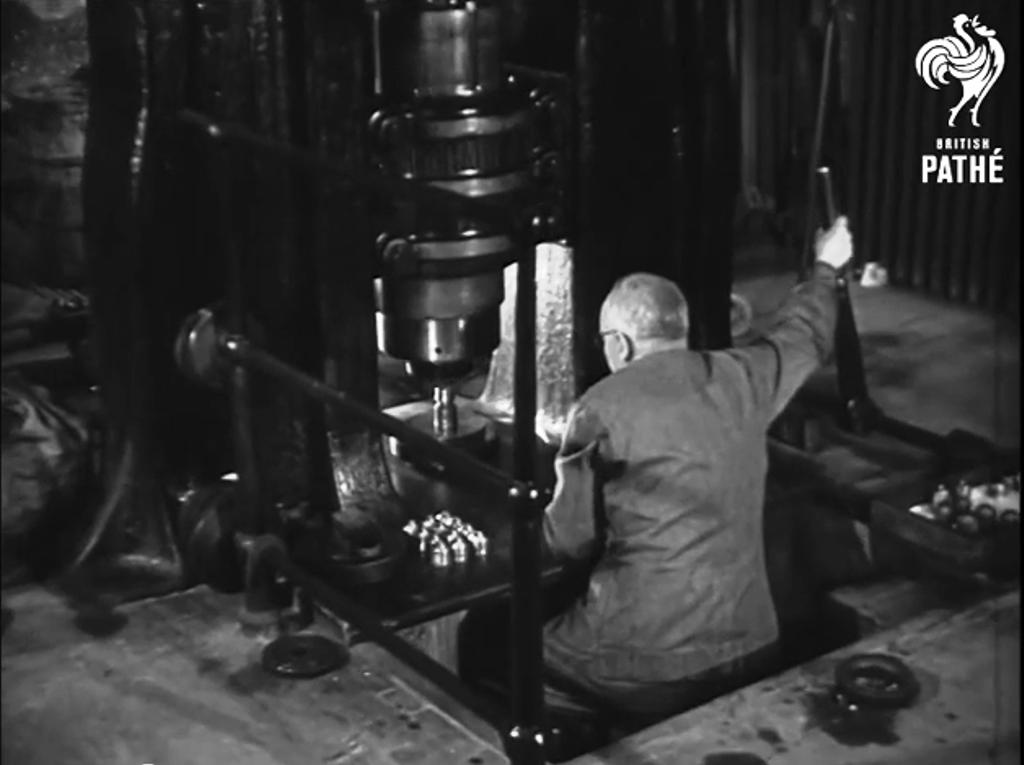

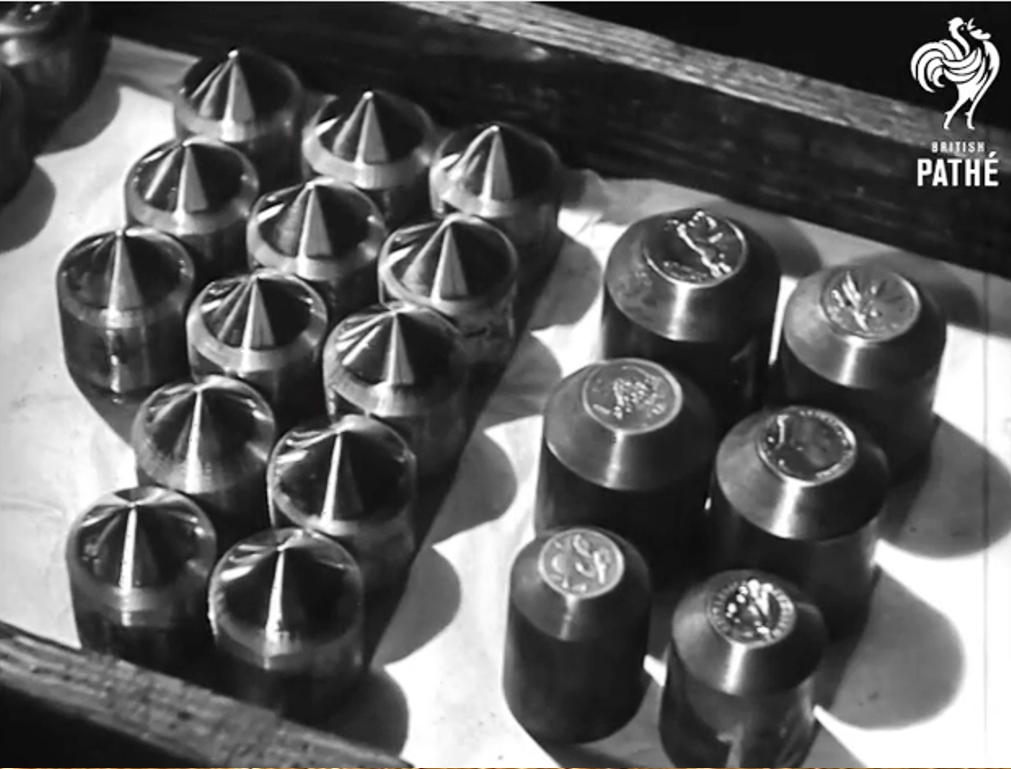

Italian mint in Rome (1950) → see. Video on the link:







post-35516-0-23366500-1427225141_thumb.j

post-35516-0-83501600-1427225149_thumb.j

Edited by YV_ laMoneta
  • Like 2

Share this post


Link to post
Share on other sites

demonetis

Italian mint in Rome (1950) → see. Video on the link:



Illuminante! Grazie per averlo postato.

Share this post


Link to post
Share on other sites

YV_ laMoneta

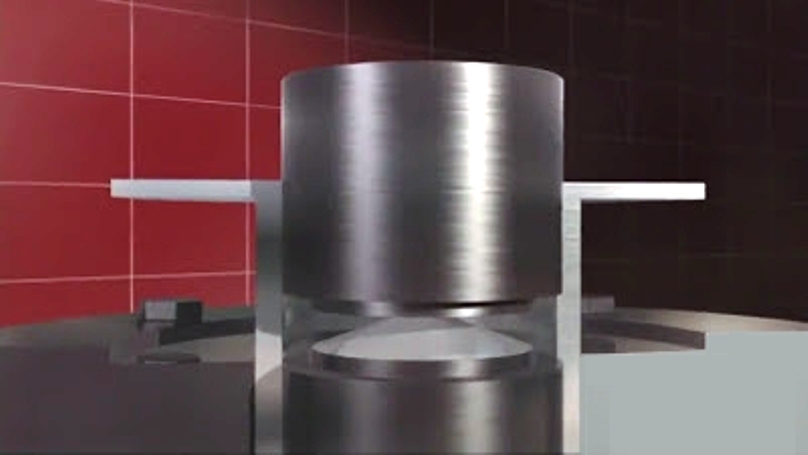

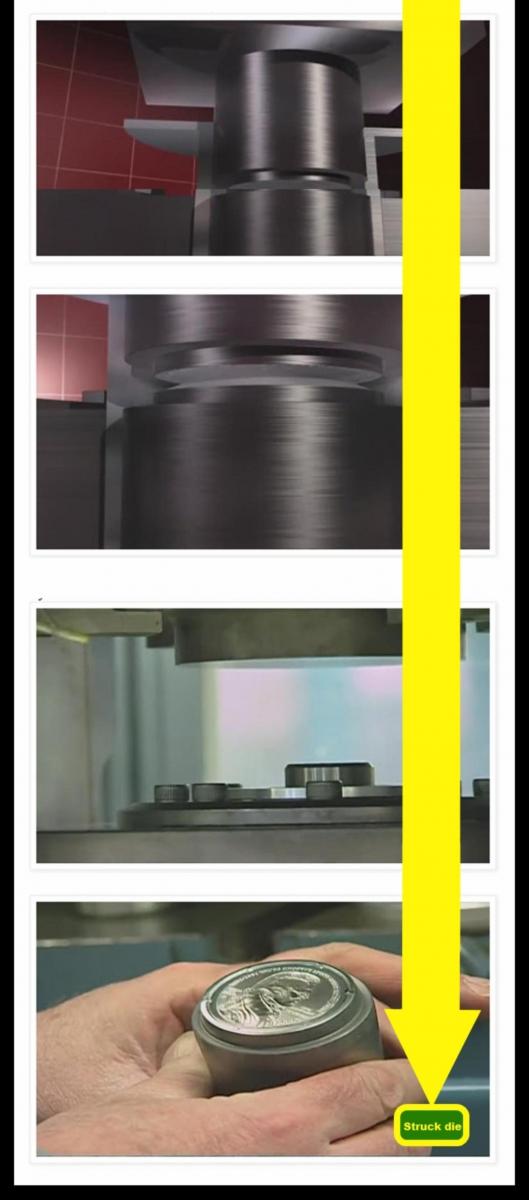

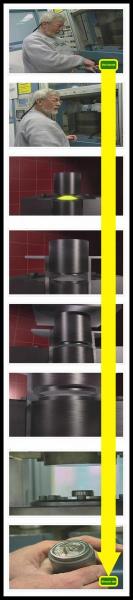

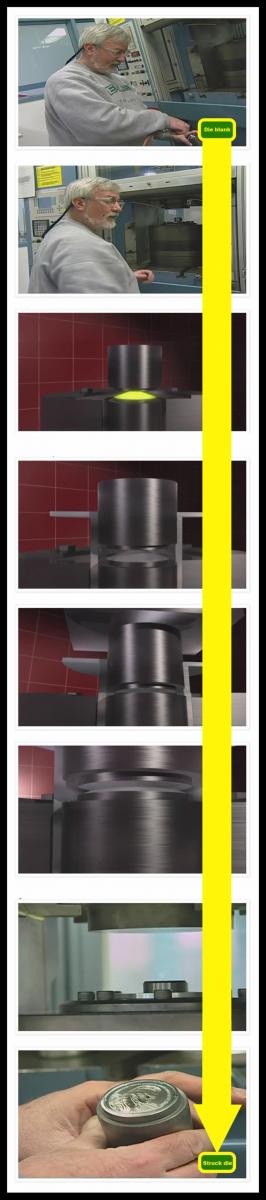

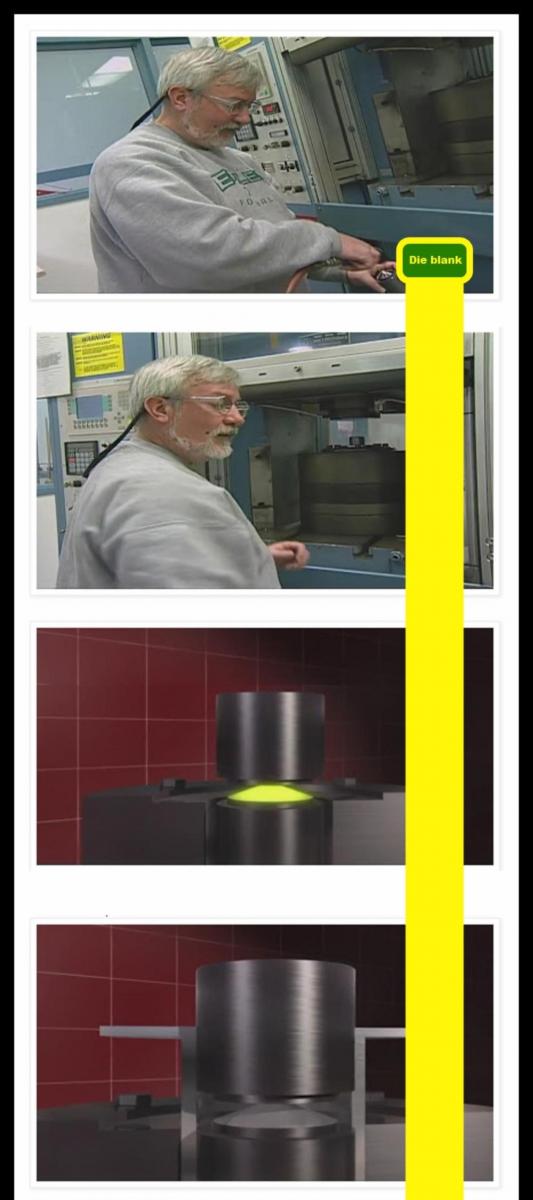

Последовательность формирования рабочего штампа в процессе медленного пластической деформации конической части стальной заготовки.



post-35516-0-58718800-1429354217_thumb.j

post-35516-0-76400400-1429354348_thumb.j

post-35516-0-70796300-1429354371_thumb.j

Edited by YV_ laMoneta

Share this post


Link to post
Share on other sites

YV_ laMoneta

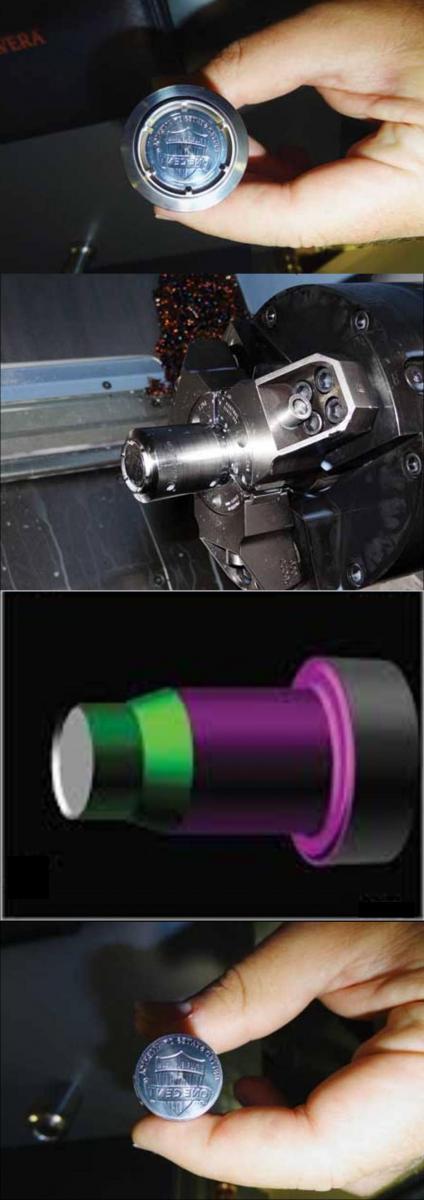

Formation of the outer contour of the future of the working stamp on a lathe.



post-35516-0-39416700-1429623644_thumb.j

Share this post


Link to post
Share on other sites

giulira
Supporter

Illuminante! Grazie per averlo postato.

molto interessante!!

c'e' anche questo video che mostra la coniazione di medaglie con la pressa a bilanciere, come nel '600 e '700



https://youtu.be/izcH6T2tziU

Share this post


Link to post
Share on other sites

YV_ laMoneta

molto interessante!!

c'e' anche questo video che mostra la coniazione di medaglie con la pressa a bilanciere, come nel '600 e '700



https://youtu.be/izcH6T2tziU

Yes.
I know this video. Great video

Share this post


Link to post
Share on other sites

YV_ laMoneta

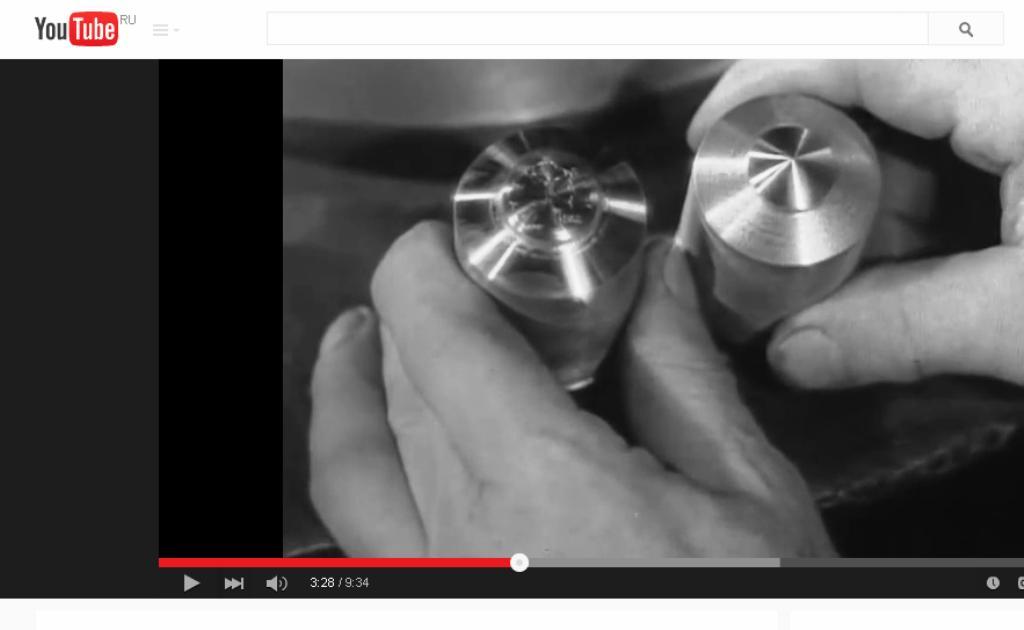

Mint in Philadelphia ("about" 1940) → see. Video between 2.54 - 3.30 minutes on the link:



post-35516-0-53830200-1430137934_thumb.j

Edited by YV_ laMoneta

Share this post


Link to post
Share on other sites

YV_ laMoneta

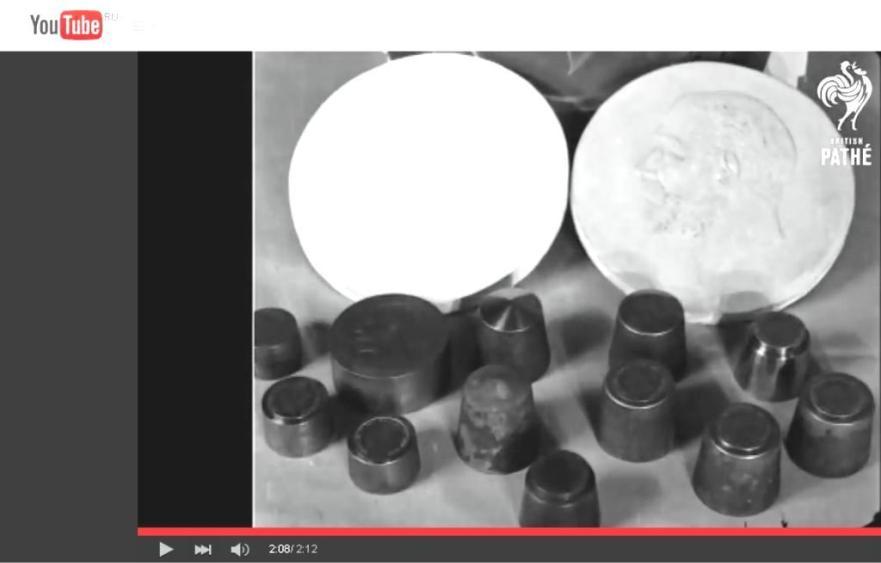

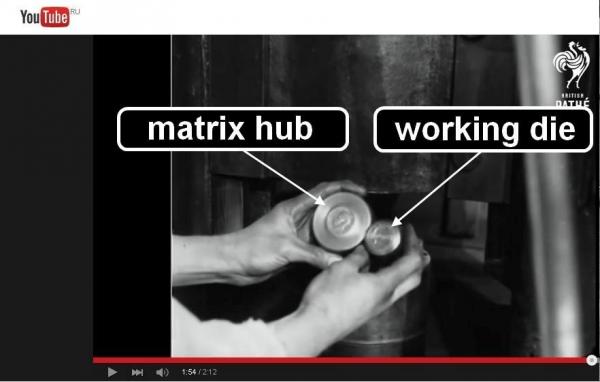

The process of forming the working part of the stamp for coinage by pressing the tapered portion of the working die steel billet in  matrix hub, the Mint in London (1925) → see. Video link:





post-35516-0-22849100-1430457823_thumb.j

post-35516-0-01026200-1430457841_thumb.j

Share this post


Link to post
Share on other sites

YV_ laMoneta

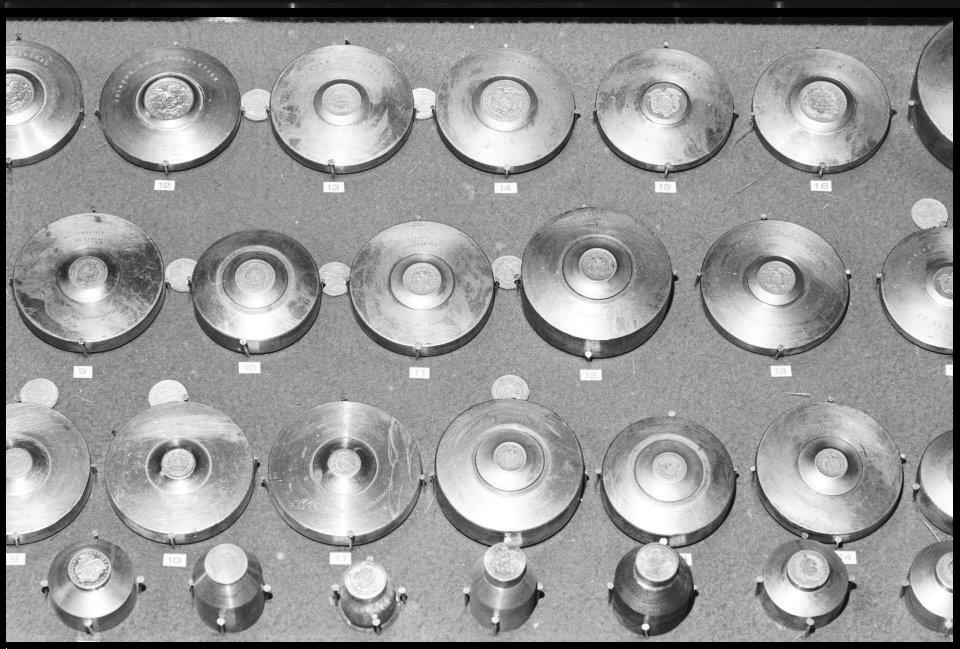

1. Matrix hubs ("positives of") and "working dies" ("the negatives") for the production of of Bolivian of coins of the eighties of the XIX century at the mint in Potosi (Bolivia).

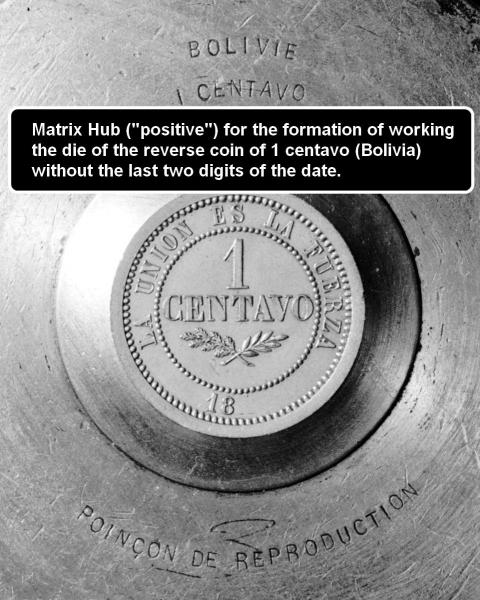

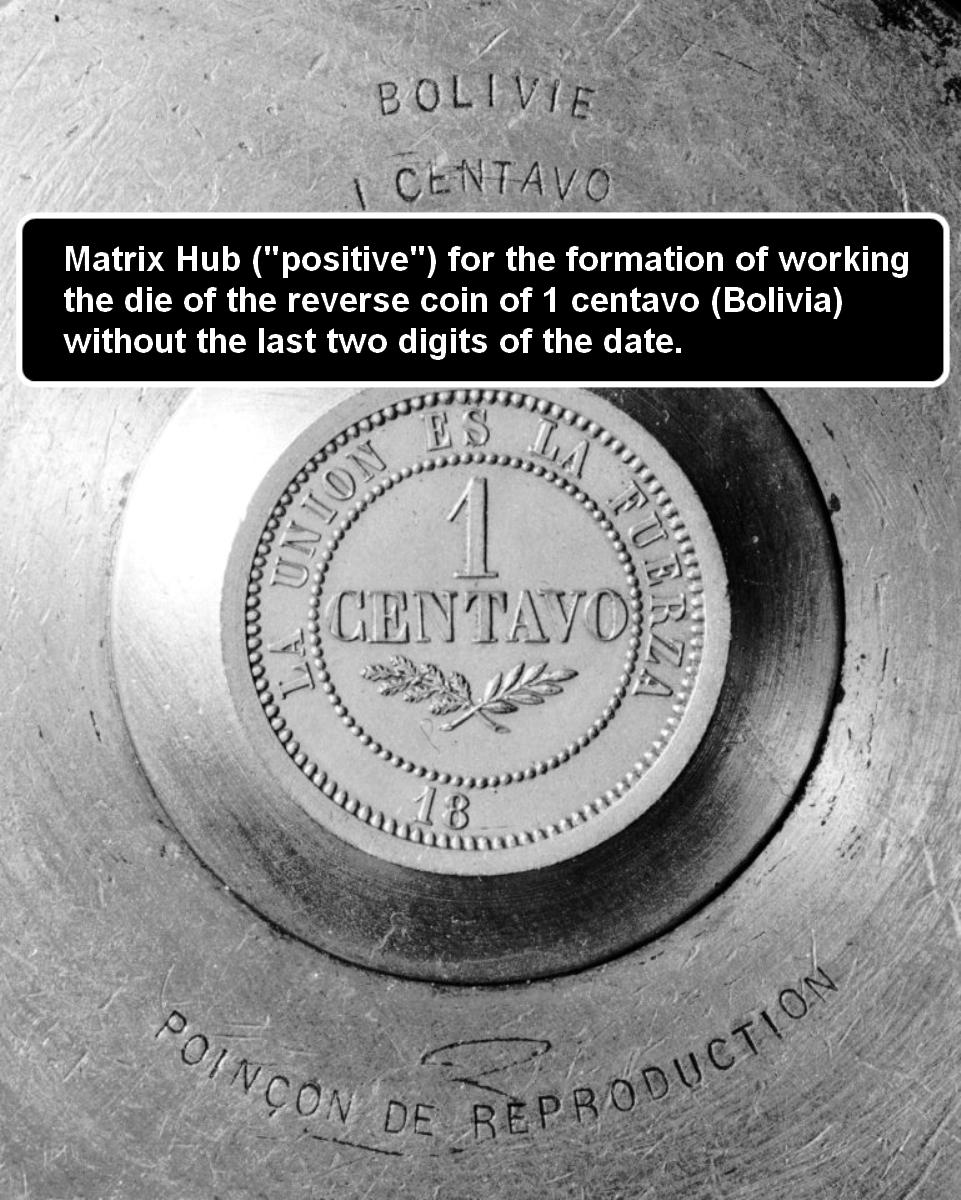

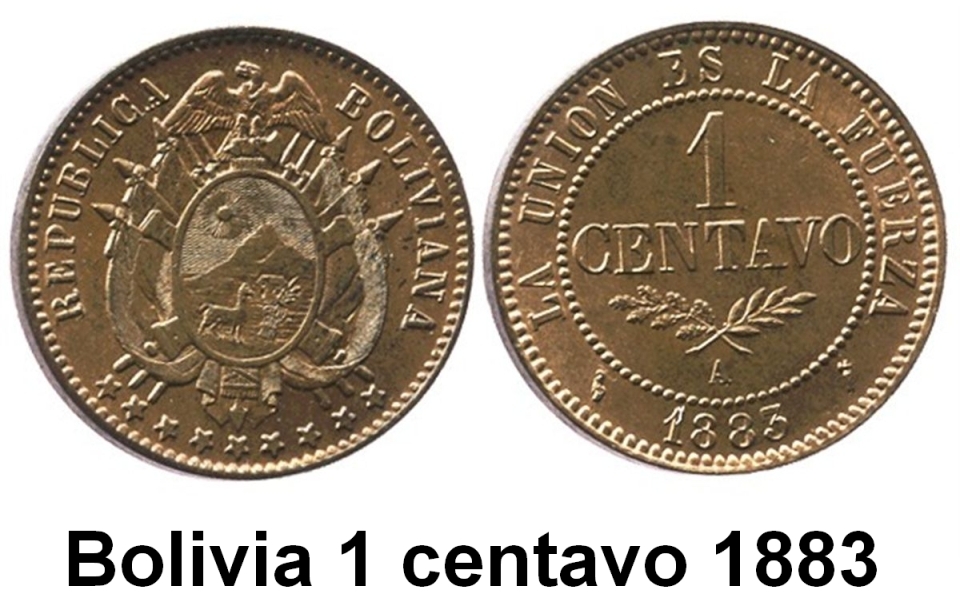

2. Matrix Hub ("positive") for the formation of working the die of the reverse coin of 1 centavo (Bolivia) without the last two digits of the date.

post-35516-0-35855500-1430496216_thumb.j

post-35516-0-36393100-1430496425_thumb.j

post-35516-0-38849400-1430496441_thumb.j

Share this post


Link to post
Share on other sites

YV_ laMoneta

I emphasize:



1. Formation of the working part of the stamp, in the process of slow plastic deformation of the tapered portion of steel billets, occurs once.



2. No repeated die hubbing, offset, doubling of contours of letters, numbers, pictures here and there can not be.



Against what I have said above there is objections?
